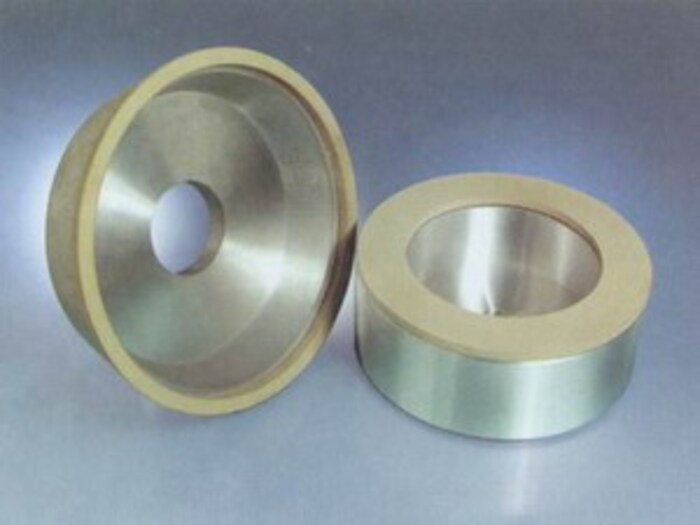

GRINDING WHEEL FOR PCD

Name: GRINDING WHEEL FOR PCD
Brand: Micro Products
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GRINDING WHEEL FOR PCD Specification

Abrasive
Diamond

Product Type
Grinding Wheel for PCD (Polycrystalline Diamond)

Application
Grinding and sharpening of PCD (Polycrystalline Diamond) and PCBN Tools

Grain Size
D20-D91 (Micron range, depending on application)

Bond Type
Resin Bond / Metal Bond

Depth of Working Layer
1.5 mm - 5 mm

Size
Customized as per requirement; common outer diameters: 100 mm, 125 mm, 150 mm, 200 mm

Bonding Agent
Resin or Metal

RPM
Max 4500 - 6000 RPM (based on wheel size)

Abrasive Grit Size
D20 - D91

Thickness
1 mm - 10 mm; as required

Wheel Size
100 mm - 200 mm (Outer Diameter), Customized Sizes Available

Width
Customizable (Standard widths typically range from 3 mm to 50 mm)

Harness
Superhard (suitable for ultra-hard materials)

Shape
Round / Circular

Width of Working Layer
customizable; typical: 3 mm - 10 mm

Texture
Fine / Standard (Application-specific)

Abrasive Concentration
75% or as required

Hole Size
31.75 mm standard, customized as per spindle

Maximum Operating Speed
35 m/s - 60 m/s

Hardness Grade
R - S (Medium to Hard)

Surface Finish
High Precision, Ra<0.2m possible

Coolant Requirement
Wet or dry grinding; coolant recommended for extended tool life

Compatible Materials
PCD, PCBN, CVD, and carbide tools

Custom Order
Available as per client drawing/specification

Packaging Type
Individual protective box

Life Expectancy
High (subject to proper usage and material)

GRINDING WHEEL FOR PCD Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About GRINDING WHEEL FOR PCD

Procure top-tier Grinding Wheels for PCD engineered for superior hardness (Grade R - S) and a towering operating speed of 35 m/s to 60 m/s. Take advantage of competitive pricing while experiencing opulent precision finishing (Ra<0.2m) for PCD, PCBN, CVD, and carbide tools. Our resin and metal bond wheels offer customizable dimensions and textures, ensuring optimal compatibility and high life expectancy under proper use. Each wheel is packaged in an individual protective box, with custom options available to match specific client needs. Exported, manufactured, and supplied from India.

Premium Features & Distinct Competitive Advantages

Experience the opulent performance of our Grinding Wheel for PCD, designed for superhard tool sharpening and precision grinding. With customizable widths, grain sizes, and bonding types, our wheels cater to a variety of high-precision applications. Competitive advantages include exceptional surface finish, top-tier abrasive concentration, and flexible compatibility with wet or dry grinding, though coolant is recommended for extended tool life. Perfect for grinding PCD, PCBN, and carbide tools, these wheels deliver a consistent, high-quality surface every time.

Sample Availability, Payment Terms & Packing Details

Premium samples of our Grinding Wheel for PCD are available to showcase product quality before committing to bulk orders. We offer competitive rates with flexible payment terms to suit your procurement process. Each wheel is packed and dispatched in robust individual protective boxes, ensuring secure transit and delivery. Our efficient packing and dispatch procedures guarantee your products arrive in pristine condition, ready for immediate use in manufacturing or tool sharpening applications.

FAQ's of GRINDING WHEEL FOR PCD:

Q: How do I choose the correct grinding wheel specification for my PCD tooling application?

A: Select your grinding wheel based on the material (PCD, PCBN, CVD, carbides), required surface finish, operational speed, and machine compatibility. Custom orders can be placed as per your specific drawing or specifications.

Q: What benefits do your top-tier PCD grinding wheels offer over standard options?

A: Our wheels provide an opulent surface finish with Ra<0.2m, enhanced durability, and high precision, resulting in longer tool life and reduced downtime for resharpening or replacement.

Q: When should I use coolant with PCD grinding wheels?

A: Coolant is recommended during both wet and dry grinding processes for extended tool life and to maintain superior surface finish, especially in high-speed, high-hardness operations.

Q: What is the sample procurement process for your premium grinding wheels?

A: You may request a sample by providing your required specifications. We ensure rapid production, packing in a protective box, and prompt dispatch after confirmation of sample approval or payment, depending on agreed terms.

Q: Where are your grinding wheels manufactured and can they be customized?

A: Our wheels are manufactured in India with state-of-the-art quality controls. Customization is available for shape, size, bonding, and specifications, tailored as per your application or drawing requirements.
