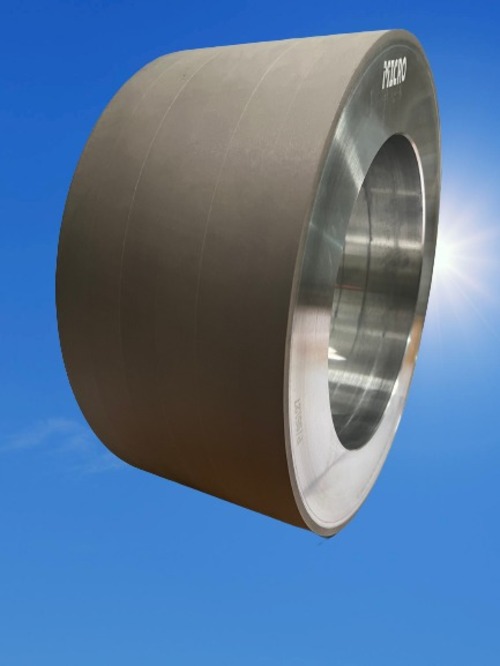

CENTERLESS GRINDING WHEEL

Name: CENTERLESS GRINDING WHEEL
Brand: Micro Products
Price: 110000.0 INR
Availability: InStock

Price 110000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CENTERLESS GRINDING WHEEL Specification

Width
100 mm

Thickness
50 mm to 300 mm

Grain Size
Coarse to Fine Available (e.g., 46, 60, 80, 120)

Abrasive
Aluminium Oxide/Silicon Carbide

Bonding Agent
Resin, Vitrified, or Custom

Wheel Size
Up to 500 mm OD

Hole Size
125 mm (customizable)

Product Type
Centerless Grinding Wheel

Shape
Round/Disc

Depth of Working Layer
10 mm to 30 mm

Width of Working Layer
80 mm to 200 mm

Size
250 mm to 500 mm Diameter

Bond Type
Resin Bonded

Texture
Porous/Uniform

Harness
Medium to Hard (as specified)

Abrasive Concentration
Standard (Industrial Grade)

RPM
1800 to 3200 RPM (as per size/specification)

Abrasive Grit Size
46 to 120 (as per requirement)

Application
Precision Grinding, Cylindrical Grinding, Automotive, Bearing Manufacturing

Safety Standard
ANSI B7.1 / IS 551

Operating Speed
Up to 35 m/s

Surface Finish
Up to Ra 0.2 micron

Compatible Coolants
Oil, Water Soluble, Synthetic

Maximum Operating Temperature
Up to 200C

Industries Served
Automotive, Tool Room, Bearing, Steel, Foundry

Wheel Hardness Code
H to N

Customization Available
Yes, according to customer specifications

Reinforcement
Fibre reinforced (optional)

CENTERLESS GRINDING WHEEL Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About CENTERLESS GRINDING WHEEL

Pick Yours today - the ace CENTERLESS GRINDING WHEEL, designed for imposing performance in automotive, tool room, and bearing industries. This excellent wheel, available in diameters from 250 mm to 500 mm and thickness up to 300 mm, delivers a surface finish up to Ra 0.2 micron. Built to withstand speeds up to 35 m/s and temperatures up to 200C, the resin bonded abrasive is reinforced for strength. Customization is available for your special rate needs, including hardness, bond type, and coolants. Conforms to ANSI B7.1 and IS 551.

Advanced Usage & Special Features of Centerless Grinding Wheel

The CENTERLESS GRINDING WHEEL is engineered for high-performance precision grinding in applications like cylindrical, automotive, and bearing manufacturing. Its special features include grain size ranging from coarse to fine (46 to 120), wheel hardness from H to N, and compatibility with oil, water soluble, or synthetic coolants. Fibre reinforcement and customization options further make this machine-excellent tool perfect for tailored industrial use, achieving uniform, porous texture, and impressive surface finishes as fine as Ra 0.2 micron.

Efficient Supply Ability & Domestic Market Reach

With a robust supply chain, each Purchase Order for CENTERLESS GRINDING WHEEL is processed swiftly, ensuring Shipped Goods reach you through leading FOB Ports in India. Centerless wheels are available for quick dispatch across all main domestic markets as well as for export. With a ready inventory and strong manufacturing backup, customers benefit from reliable and timely deliveries, tailored to their specifications and production schedules.

FAQ's of CENTERLESS GRINDING WHEEL:

Q: How can the CENTERLESS GRINDING WHEEL be customized for my specific requirements?

A: This wheel can be customized in size, hardness, abrasive type, bond type, grit size, and even hole size to match your machine and grinding specifications. Just share your needs while placing your Purchase Order.

Q: What industries benefit most from using the CENTERLESS GRINDING WHEEL?

A: Automotive, bearing manufacturing, tool rooms, steel plants, and foundries commonly use these wheels for their precision and excellent surface finish, making them ideal for high-demand industrial applications.

Q: Where do you ship CENTERLESS GRINDING WHEELS from and which domestic markets do you serve?

A: We ship from major FOB Ports in India and offer quick dispatch to all main domestic markets, providing widespread coverage and reliable supply to diverse industries.

Q: What safety standards are followed for the CENTERLESS GRINDING WHEEL?

A: Each wheel adheres to ANSI B7.1 and IS 551 safety standards, ensuring operational safety and compliance for industrial grinding processes.

Q: What is the process for maintaining optimal wheel performance and lifespan?

A: Using the correct coolant, adhering to specified operating speed and temperature, and periodic inspection for wear ensure the wheel's excellent performance and longevity.
